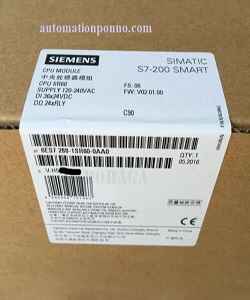

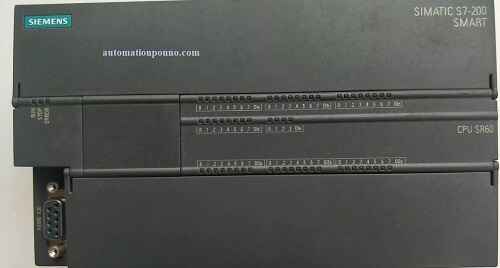

6ES7 288 1SR60 0AA0 SR60 CPU
Ask Price WhatsApp: +8801713-722455
Description
6ES7 288 1SR60 0AA0 SR60 CPU & 6ES7288 1SR60 0AA1 is the programmable Logic Controller of SIMATIC S7-200 SMART series, this part number CPU SR60, CPU is the AC/DC/relay, has onboard I/O: 36 points Digital Input (DI) 24 V DC & 24 Points Digital Outputs (DO) relay 2 A; power supply: AC 85-264 V AC at 47-63 Hz, program/data memory 50 KB.
Specification of 6ES7 288 1SR60 0AA0 SR60 CPU
| Part number | 6ES7288-1SR60-0AA0 |
| General information | |
| Product type designation | CPU SR60 AC/DC/Relay |
| Engineering with | |
| ● Programming package | STEP 7 Micro/WIN SMART |
| Installation type/mounting | |
| Rail mounting | Yes; Standard – DIN rail |
| Supply voltage | |
| Rated value (AC) | |
| ● 120 V AC | Yes |
| ● 230 V AC | Yes |
| permissible range, lower limit (AC) | 85 V |
| permissible range, upper limit (AC) | 264 V |
| Line frequency | |
| ● permissible range, lower limit | 47 Hz |
| ● permissible range, upper limit | 63 Hz |
| Input current | |
| Current consumption (rated value) | 220 mA; at 240 V AC |
| Current consumption, max. | 370 mA; At 120 V AC |
| Inrush current, max. | 16.3 A; at 264 V |
| Output current | |
| Current output, max. | 300 mA; 24 V DC Sensor Power |
| for backplane bus (5 V DC), max. | 1.4 A; max. 5 V DC for EM bus |
| Power loss | |
| Power loss, max. | 25 W |
| Memory | |
| Type of memory | DDR |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 20 kbyte |
| Memory size | 30 kbyte; Program memory |
| Micro Memory Card | Yes; microSDHC Card (optional) |
| Backup | |
| ● present | Yes; Maintenance free, RTC requires 7 days. |
| CPU processing times | |
| for bit operations, typ. | 150 ns; / instruction |
| for word operations, typ. | 1.2 µs; / instruction |
| for floating point arithmetic, typ. | 3.6 µs; / instruction |
| Address area | |
| I/O address area | |
| ● Inputs | 144 byte; 256 bit of digital inputs & 56 words of analog inputs |
| ● Outputs | 144 byte; 256 bit of digital outputs & 56 words of analog outputs |
| Time of day | |
| Clock | |
| ● Type | Hardware clock, no battery backup Yes |
| ● Hardware clock (real-time) | 7 d |
| ● Backup time | 120 s; within 120s/month at 25 °C |
| ● Deviation per day, max. | |
| Digital inputs | |
| Number of digital inputs | 36; Integrated |
| ● of which inputs usable for technological functions | 4; HSC (High Speed Counting) |
| Source/sink input | Yes |
| Number of simultaneously controllable inputs | |
| all mounting positions | |
| — up to 40 °C, max. | 36 |
| Input voltage | |
| ● Type of input voltage | DC |
| ● Rated value (DC) | 24 V |
| ● for signal “0” | 5 V DC at 1 mA |
| ● for signal “1” | 15 V DC at 2.5 mA |
| Input current | |
| ● for signal “0”, max. (permissible quiescent current) | 1 mA |
| ● for signal “1”, typ. | 4 mA |
| Input delay (for rated value of input voltage) | |
| for standard inputs | |
| — parameterizable | Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four |
| — at “0” to “1”, min. | 0.2 ms |
| — at “0” to “1”, max. | 12.8 ms |
| for technological functions | |
| — parameterizable | Yes; 6 Single phase: 4 HSCs at 200 kHz; 2 HSCs at 30 kHz 4 A/B phase: 2 |
| HSCs at 100 kHz; 2 HSCs at 20 kHz | |
| Cable length | |
| ● shielded, max. | 500 m; 50m shielded for HSC inputs |
| ● unshielded, max. | 300 m; for technological functions: No |
| Digital outputs | |
| Number of digital outputs | 24; Relays |
| Switching capacity of the outputs | |
| ● with resistive load, max. | 2:00 AM |
| ● on lamp load, max. | 30 W; 30 W with DC, 200 W with AC |
| Output delay with resistive load | |
| ● “0” to “1”, max. | 10 ms; max. |
| ● “1” to “0”, max. | 10 ms; max. |
| Switching frequency | |
| ● of the pulse outputs, with resistive load, max. | 1 Hz |
| Relay outputs | |
| ● Number of relay outputs | 24 |
| Cable length | |
| ● shielded, max. | 500 m |
| ● unshielded, max. | 150 m |
| Interfaces | |
| Number of industrial Ethernet interfaces | 1 |
| Number of RS 485 interfaces | 1 |
| 1. Interface | |
| Interface type | PROFINET |
| Isolated | Yes; Transformer isolated, 1,500V AC |
| automatic detection of transmission rate | Yes; 10/100 Mbit/s |
| Auto negotiation | Yes |
| Auto crossing | Yes |
| Interface types | |
| ● RJ 45 (Ethernet) | Yes |
| Protocols | |
| ● PROFINET IO Controller | Yes; Since V2.4 |
| ● PROFINET IO Device | Yes; I-Device since V2.5 |
| PROFINET IO Controller | |
| ● Transmission rate, max. | 100 Mbit/s |
| Services | |
| — Number of connectable IO Devices, max. | 8 |
| — Updating time | 4 ms; The minimum value of the update time also depends on the communication component set for PROFINET IO, on the number of IO devices and the quantity of configured user data. |
| Address area | |
| — Inputs, max. | 128 byte; Per device |
