USB XW2Z 200S CV Omron PLC Cable

Description

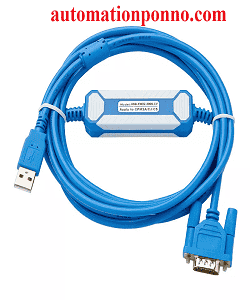

The USB XW2Z 200S CV Omron PLC Cable is specifically designed to connect a PC to a wide range of Omron PLCs for programming, monitoring, and troubleshooting tasks. This cable enables communication between the USB port of a PC and the RS232C port of various Omron PLC models, such as CQM1H, C200HE, CPM2C, CJ1M, and CS Series PLCs. If you need Omron PLC Programming Cable USB-XW2Z-200S-CV you can contact BAT Power Solution Via WhatsApp: +8801713722455

Key Features USB XW2Z 200S CV Omron PLC Cable

1. USB to RS232 Communication:
   • The cable converts the USB signal from the PC into an RS232C serial connection, which is required for communication with many older and newer Omron PLC models.
2. Driver Installation:
   • The USB driver must be installed on the PC, which creates a virtual COM port. This virtual COM port is used by programming software such as CX-Programmer to interface with the Omron PLC.
   • The driver is typically provided with the cable or can be downloaded from Omron’s official website.
3. Plug-and-Play:
   • Once the driver is installed, the cable offers plug-and-play functionality. You can connect the cable, configure the communication settings, and immediately begin programming or troubleshooting.

Applications of Omron programming cable

• Programming: You can upload, download, and edit programs on supported Omron PLCs using CX-Programmer or other Omron software.
• Monitoring: Monitor real-time data from the PLC, such as status, memory values, and I/O signals, for diagnostics and analysis.
• Troubleshooting: Use the cable for fault diagnostics and troubleshooting to ensure proper operation of the PLC.

Supported Omron PLC Models

This programming cable is compatible with the following Omron PLCs:

• CQM1H Series
• C200HE Series
• CPM2C Series
• CJ1M Series
• CS Series (including CS1, CJ1, CJ2)
• CJ/CS Series HG/HS/HX variants

Connection Setup USB XW2Z 200S CV Omron PLC Cable

1. Connect the USB end of the USB-XW2Z-200S-CV cable to the USB port on your PC.
2. Install the USB driver if it doesn’t automatically install. The driver creates a virtual COM port that the programming software can use for communication.
3. Connect the RS232C end of the cable to the RS232 port on the Omron PLC.
4. Open CX-Programmer (part of the CX-One suite) or another Omron software on your PC.
5. In the software, select the correct COM port corresponding to the virtual port created by the USB driver.
6. Set the appropriate communication parameters (baud rate, stop bits, etc.) to match the settings on the PLC.
7. You can now upload/download programs, monitor the PLC, or perform diagnostics.

Important Considerations

• Make sure the correct USB driver is installed and that the appropriate virtual COM port is selected in CX-Programmer or the software you’re using.
• Verify that the communication parameters (baud rate, stop bits, etc.) in the software match those set on the PLC to ensure reliable communication.
• Ensure that the PLC is powered on and ready for communication when connecting the cable.

Troubleshooting Tips:

• If communication fails, verify the correct COM port is selected in CX-Programmer.
• Reinstall the USB driver if the cable is not recognized by the PC.
• Ensure the RS232C port on the PLC is in good working condition and that the cable is securely connected at both ends.
• Verify that the communication parameters are set correctly in the software and on the PLC.

Supported Software of USB XW2Z 200S CV Omron PLC Cable

• CX-Programmer (part of CX-One Suite)
• CPT (Controller Programming Tool) for older models like C200HE
• Other compatible Omron software for PLC programming and diagnostics.
