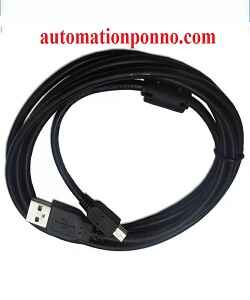

USB TK USB MT Weintek hmi programming cable

Description

The USB TK USB MT Weintek hmi programming cable USB-B3 are specific programming cables used for connecting Weintek TK series and MT series HMIs to a PC for programming, configuration, and troubleshooting using EasyBuilder Pro software. The USB-B3 Weintek HMI Programming Cable is used for connecting a PC to a Weintek HMI. This cable allows users to interface with Weintek HMIs via Weintek’s EasyBuilder Pro software to download/upload projects and perform real-time monitoring. If you need USB-TK/MT Weintek Programming Cable price in BD, you can contact BAT Power Solution Via WhatsApp: +8801713722455

Key Features of USB TK USB MT Weintek hmi programming cable

1. USB to HMI Communication:
   • These cables allow for communication between the USB port on your PC and the USB programming port on Weintek TK and MT series HMIs.
2. Driver Installation:
   • Both the USB TK and USB MT cables require a USB driver to create a virtual COM port on the PC. This virtual COM port is then used by EasyBuilder Pro to communicate with the HMI.
   • The driver is usually included with the cable or can be downloaded from the Weintek website.
3. Plug-and-Play Functionality:
   • Once the drivers are installed, the USB TK and USB MT cables provide simple plug-and-play functionality for transferring projects and performing real-time monitoring or diagnostics on the HMI.

Applications

• Programming: Download or upload HMI projects to/from the Weintek HMI using EasyBuilder Pro.
• Monitoring: Use real-time monitoring to view data and ensure the HMI is functioning correctly during operations.
• Troubleshooting: Analyze and fix issues in the HMI by interfacing through the programming cable.

Connection Setup USB TK USB MT Weintek hmi programming cable

1. Connect the USB end of the USB TK or USB MT cable to the USB port on your PC.
2. Install the USB driver if it is not automatically detected. The driver creates a virtual COM port, which is needed to establish communication between the PC and HMI.
3. Connect the other end of the cable to the appropriate USB programming port on the Weintek HMI.
4. Launch EasyBuilder Pro on your PC.
5. In EasyBuilder Pro, select the correct communication port (COM port) created by the USB cable.
6. You can now proceed to upload/download projects, monitor the HMI, or perform troubleshooting.

Supported Weintek Devices

• USB TK Cable: Supports programming for Weintek TK series HMIs (such as TK6070iP, TK6100i).
• USB MT Cable: Supports programming for Weintek MT series HMIs (such as MT8071iE, MT6071iP, MT8102iE).

Important Considerations

• Make sure the USB drivers are installed correctly and that the correct virtual COM port is selected in EasyBuilder Pro.
• Verify the correct HMI model is selected in the software to avoid communication errors.
• Ensure that the HMI is powered on and ready for communication when connected.

Troubleshooting Tips:

• If the PC doesn’t recognize the HMI, check if the USB driver has been installed properly. Reinstall the driver if necessary.
• Ensure you are selecting the correct virtual COM port in the software. This is usually found under Device Manager in Windows.
• If communication fails, verify that the cable is securely connected to both the PC and the HMI. Others Cable
