USB CN226 Omron PLC Cable

Description

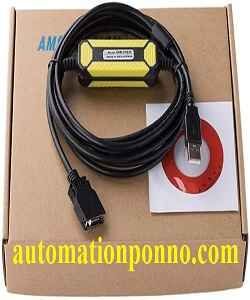

The USB CN226 Omron PLC Cable is used for connecting a computer to certain OMRON PLCs for programming, monitoring, and troubleshooting purposes. It is an updated version that connects OMRON PLCs with peripheral ports to modern computers via USB, making it compatible with computers that do not have serial ports. If you need to USB CN226 Price In BD, Omron PLC to PC Communication Price In BD or Omron PLC Programming Cable Price In BD / Omron plc cable you contact BAT Power Solution Via WhatsApp/email: +8801713722455, +8801911300632.

Download Driver

 OMRON Programming Cable Omron CS1W CN226Details

1. Cable Model:
   • The USB-CN226 cable is specifically designed for OMRON PLCs that feature a peripheral port.
   • It is compatible with various OMRON PLC models, such as the CPM1, CPM1A, CPM2A, CPM2C, CQM1, and C200HS series.
2. Connection Type:
   • The cable has a USB Type A connector for connecting to a computer.
   • The other end has a special 6-pin mini-DIN connector for connecting to the peripheral port on the OMRON PLC.
3. Use Case:
   • The USB-CN226 cable is used to program, monitor, and troubleshoot OMRON PLCs using software such as CX-Programmer.
   • It provides a straightforward connection for modern computers that no longer have native RS232 ports.
4. Cable Length:
   • The length is typically around 1.5 to 3 meters, providing enough range for comfortable use during programming and setup.
5. Driver Requirements:
   • The USB-CN226 requires a USB-to-serial driver that needs to be installed on your computer.
   • The driver will create a virtual COM port, allowing your programming software to communicate with the PLC.
   • Drivers are generally provided with the cable or available for download from the OMRON support website.

Installation and Connection Instructions USB CN226 Omron PLC Cable

1. Connect the Cable:
   • Plug the USB Type A connector into a USB port on your computer.
   • Plug the 6-pin mini-DIN connector into the peripheral port of the OMRON PLC.
2. Driver Installation:
   • After connecting the cable for the first time, your computer may prompt you to install the required driver.
   • Install the driver software to create the virtual COM port that will be used for communication.
   • If the driver is not installed automatically, it can be downloaded from the OMRON website or found on the CD that often comes with the cable.
3. Configure the Programming Software:
   • Open CX-Programmer, which is OMRON’s standard programming software.
   • Set the communication settings to use the COM port assigned to the USB-CN226 cable. You can identify the correct COM port through Device Manager on your computer.
4. Programming and Monitoring:
   • Once the cable is properly connected and configured, you can start programming and monitoring the PLC using CX-Programmer.
   • You can write ladder programs, upload/download project files, and monitor real-time PLC operations through this connection.

The USB-CN226 programming cable is an essential tool for connecting OMRON PLCs that have a peripheral port to modern computers. It is compatible with various models, such as CPM1, CPM2A, CQM1, and more. The cable uses a USB Type A to 6-pin mini-DIN connection and requires a USB-to-serial driver to create a virtual COM port. With this setup, you can easily program and monitor OMRON PLCs using CX-Programmer.
