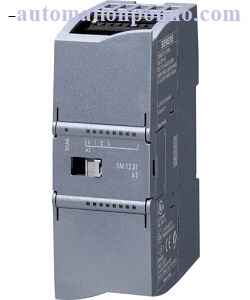

Siemens 6ES7231 5PD32 0XB0 Siemens SM 1231 RTD
Siemens 6es7231-5pd32-0xb0 Price in Bangladesh
Brand: Siemens
Model: 6es7231-5pd32-0xb0
Origin: China
Ask Price Call or WhatsApp:+8801713722455
Description
Siemens 6ES7231 5PD32 0XB0 Siemens SM 1231 RTD is the analog input module of SIMATIC S7-1200 series Programmable Logic Controller (PLC), The Analog input Module SM 1231 RTD has 4xAI RTD Channel. Through the Channel we can show the RTD Value for industrial Application. If you need any person 6ES7231-5PD32-0XB0 Price in Bangladesh you can contact our office BAT Power Solution, Call or WhatsApp:+8801713722455. After check then we feedback to you as soon as possible.
Specification of Siemens 6ES7231 5PD32 0XB0 Siemens SM 1231 RTD
| Brand | SIEMENS |
| Model | 6ES7231-5PD32-0XB0 |
| General information | |
| Product type designation | SM 1231, AI 4×16 bit RTD |
| Supply voltage | |
| Rated value (DC) | 24 V |
| Input current | |
| Current consumption, typ. | 40 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
| Power loss | |
| Power loss, typ. | 1.5 W |
| Analog inputs | |
| Number of analog inputs | 4; Resistance thermometer |
| permissible input voltage for voltage input (destruction limit), | ±35 V |
| max. | |
| Technical unit for temperature measurement adjustable | Degrees Celsius/degrees Fahrenheit |
| Input ranges | |
| ● Voltage | No |
| ● Current | No |
| ● Thermocouple | No |
| ● Resistance thermometer | Yes; Resistance-type transmitter: Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, |
| Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000 | |
| ● Resistance | Yes; 150 Ω, 300 Ω, 600 Ω |
| Input ranges (rated values), resistance thermometer | |
| ● Cu 10 | Yes |
| — Input resistance (Cu 10) | 10 Ω |
| ● Ni 100 | Yes |
| — Input resistance (Ni 100) | 100 Ω |
| ● Ni 1000 | Yes |
| — Input resistance (Ni 1000) | 1 000 Ω |
| ● LG-Ni 1000 | Yes |
| — Input resistance (LG-Ni 1000) | 1 000 Ω |
| ● Ni 120 | Yes |
| — Input resistance (Ni 120) | 120 Ω |
| ● Ni 200 | Yes |
| — Input resistance (Ni 200) | 200 Ω |
| ● Ni 500 | Yes |
| — Input resistance (Ni 500) | 500 Ω |
| ● Pt 100 | Yes |
| — Input resistance (Pt 100) | 100 Ω |
| ● Pt 1000 | Yes |
| — Input resistance (Pt 1000) | 1 000 Ω |
| ● Pt 200 | Yes 200 Ω |
| — Input resistance (Pt 200) | Yes |
| ● Pt 500 | 500 Ω |
| — Input resistance (Pt 500) | |
| Input ranges (rated values), resistors | |
| ● 0 to 150 ohms | Yes |
| ● 0 to 300 ohms | Yes |
| ● 0 to 600 ohms | Yes |
| Thermocouple (TC) | |
| Temperature compensation | |
| — parameterizable | No |
| Analog value generation for the inputs | |
| conversion method / at the analog input | integrating |
| Integration and conversion time/resolution per channel | |
| ● Resolution with overrange (bit including sign), max. | 15 bit; + sign No |
| ● Integration time, parameterizable | 85 dB at 50 / 60 / 400 Hz |
| ● Interference voltage suppression for interference frequency f1 in Hz | |
| Errors/accuracies | |
| Temperature error (relative to input range), (+/-) | 25 °C ±0.1%, to 55 °C ±0.2% total measurement range |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.05% |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | |
| ● Common mode interference, min. | 120 dB |
| Interrupts/diagnostics/status information | |
| Alarms | Yes |
| Diagnostics function | Yes; Can be read out |
| Alarms | |
| ● Diagnostic alarm | Yes |
| Diagnoses | |
| ● Monitoring the supply voltage | Yes Yes |
| ● Wire-break | |
| Diagnostics indication LED | |
| ● for status of the inputs | Yes Yes |
| ● for maintenance | |
| Degree and class of protection | |
| IP degree of protection | IP20 |
| Standards, approvals, certificates | |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| Ambient conditions | |
| Free fall | |
| ● Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation | |
| ● min. | -20 °C |
| ● max. | 60 °C |
| ● horizontal installation, min. | -20 °C |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -20 °C |
| ● vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation | |
| ● min. | -40 °C |
| ● max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 | |
| ● Operation, min. | 795 hPa |
| ● Operation, max. | 1 080 hPa |
| ● Storage/transport, min. | 660 hPa |
| ● Storage/transport, max. | 1 080 hPa |
| Relative humidity | |
| ● Operation at 25 ℃ without condensation, max. | 95% |
| Pollutant concentrations | |
| ● SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
| connection method | |
| required front connector | Yes |
| Mechanics/material | |
| Enclosure material (front) | |
| ● Plastic | Yes |
| Dimensions | |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weights | |
| Weight, approx. | 220 g |
