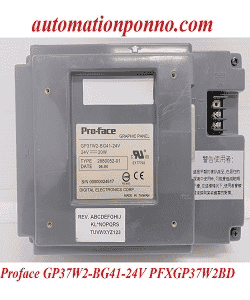

Proface GP37W2-BG41-24V PFXGP37W2BD

Description

The Proface GP37W2-BG41-24V PFXGP37W2BD is a compact 5 inch HMI (Human-Machine Interface) designed for industrial automation applications, ideal for systems that require a reliable operator interface with straightforward configuration, if you need to Proface GP37W2-BG41-24V PFXGP37W2BD  Price in Bangladesh, you can contact BAT Power Solution via Call/WhatsApp: +8801713722455. Below are the detailed specifications and features of this model:

Key Features of Proface GP37W2-BG41-24V PFXGP37W2BD

Display:

• Screen Size: 5 inches
• Resolution: 320 x 240 pixels (QVGA)
• Display Type: Monochrome or STN color LCD (depending on configuration)
• Backlight: Built-in with long-lasting performance
• Touchscreen Type: Analog resistive touchscreen

Processor & Memory:

• Processor: Efficient CPU for smooth and reliable operation
• Memory: Sufficient for typical industrial applications (specific memory details depend on the configuration)

Communication Ports:

• Serial Ports:
  • RS-232C
  • RS-422/485
  • Supports communication with PLCs and other devices using standard protocols such as Modbus RTU
• Expansion Ports: May include optional communication modules (based on configuration)

Power Supply:

• Input Voltage: 24V DC
• Power Consumption: Low power consumption for energy efficiency

Software Compatibility:

• Programmed using Proface GP-Pro EX or compatible legacy software
• Supports various industrial communication protocols for integration with a wide range of devices

Physical Dimensions:

• Mounting Style: Panel-mounted
• Dimensions:
  • (W) 185mm x (H) 125mm x (D) 58mm
• Cutout Dimensions: Approximately 170mm x 110mm

Environmental Specifications:

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Humidity: 10% to 90% (non-condensing)
• Ingress Protection: IP65-rated front panel, suitable for industrial environments

Functional Specifications, General Specifications
Model (Global Code)	GP37W2-BG41-24V (PFXGP37W2BD)
Type	Monochrome Blue-mode LCD (Blue/ White)
Backlight	CCFL (Service life: more than 25,000 hours at 24 hr. operation)
Resolution	320 × 240 pixels
Nominal Display Area (mm)	115.2(W) × 86.4(H)
Display Attributes	Blink/ Reverse Video
Contrast Control	8 levels of adjustment available via touch panel
Application Memory	1MB FLASH EPROM
	(holds up to 320 screens, assuming an average screen size of 3.2 KB)
	Data Backup Memory: 96KB SRAM *1
Touch Panel	16 × 12 keys per screen; 1 or 2 point touch
Language Fonts	4ASCII: (Code page 850) Alphanumeric (incl. European characters)
	Chinese: (GB2312-80 codes) simplified Chinese fonts
	Japanese: ANK 158, Kanji: 6962 (JIS Standards 1 & 2)
	Korean: (KSC5601 – 1992 codes) Hangul fonts
	Taiwanese: (Big 5 codes) traditional Chinese fonts
Text	8 × 8 dot font: 40 Char. per row, 30 rows
	8 × 16 dot font: 40 Char. per row, 15 rows
	16 × 16 dot font: 20 Char. per row, 15 rows
	32 × 32 dot or larger font: 10 Char. per row, 7 rows
Font Sizes	1, 2, 4, or 8-time sizes (both height and width)
	(Double size and larger characters can be displayed in high-quality fonts)
General Specifications
Model (Global Code)	GP37W2-BG41-24V (PFXGP37W2BD)
Input Voltage	DC20.4V to DC27.6V
Power Consumption	Under 20W (TYP 10W)
Voltage Endurance	AC1000V, 10mA for up to 1minute
	(between charging and FG terminals)
Allowable Voltage Drop	2ms or less
Insulation Resistance	20MΩ or higher at DC500V
	(between charging and FG terminals)
Operation Temperature	0℃ to 50 ℃
Storage Temperature	-20℃ to 60℃
Ambient Humidity	20% RH to 85%RH (no condensation)
Vibration Endurance	10 Hz to 25 Hz (X,Y,Z directions for 30 minutes at 19.6ms2)
Noise Endurance	Noise Voltage: 1000 Vp-p
(Via noise simulator)	Pulse length: 1µs
	Arise time (rise/fall): 1ns
Atmosphere	Free of corrosive gasses
Grounding	100Ω or less, or your country’s applicable standard
Certifications	EN55011-A Class A, EN50082-2
	UL/c-UL 1950, CNS Standard
Rating	Equivalent to IP65f (JEM1030), NEMA#250 TYPE 4X/12*2
External Dimensions	W207mm[8.15in] × H157mm[6.18in] × D58mm[2.28in]
Panel Cut-out	191.5 mm[7.54 in]× 141.5 mm[5.57in]
	(Panel thickness: 1.6mm[0.06in] to 5mm[0.20in])
Weight	Under 1.1kg [2.4 lb] (GP unit only)
Cooling Method	Natural air circulation

Applications:

• Machine control panels
• Process visualization
• Small-scale automation systems
• Packaging, textiles, and material handling

Advantages of Proface GP37W2-BG41-24V PFXGP37W2BD

• Compact Design: Ideal for applications with space constraints.
• Robust and Reliable: Durable construction ensures long-term performance in industrial environments.
• Wide Compatibility: Seamless communication with Proface and third-party devices using standard protocols.
• User-Friendly Interface: Simple programming and operation.

Replacement and Legacy Support:

This model is part of Proface’s legacy product lineup. While it is robust, newer models with advanced features and higher resolutions are now available. Ensure compatibility with your system if replacing an older unit.
