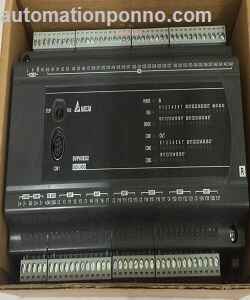

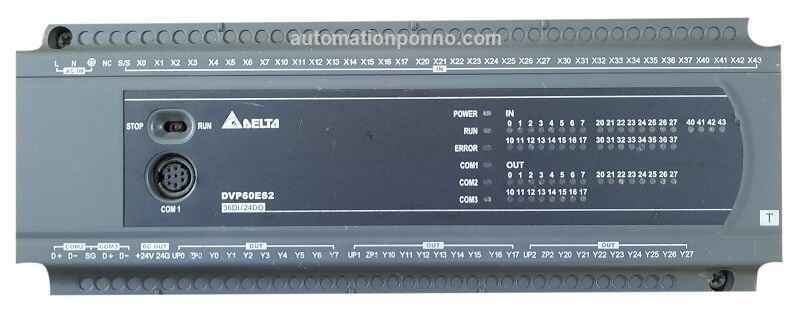

PLC delta DVP60ES200R DVP60ES00T

Description

The PLC delta DVP60ES200R DVP60ES00T is the Programmable Logic controller (PLC) of delta ES2 Series. This PLC Has no Disply & ethernet port. The DVP60ES2 PLC Has 36 digital input & 24 digital outputs. this PLC is used to Medium to big application, such as Textile, food & beverage, packaging etc. The DVP60ES2 Series Programmable Logic Controller (PLC) are Compact also highly efficient, easy to use and operation and monitoring function. This PLC has stock BAT Power Solution, if need then you can contact us via WhatsApp +8801723722455. For more plc & Module click here and see..

Specification of PLC delta DVP60ES200R DVP60ES00T

+Relay output & Transistor output

+32-bit CPU for high-speed processing

+Built-in two communication port RS-232 and   RS-485 ports

+Max. execution speed of basic instructions: 0.35 ¼

+Program capacity: 16 k steps

+Data register: 10 k words

+CE, cULus, Approvals

+Standard – 16 / 20 / 24 / 32 / 40 / 60 / 80 I/O points for a variety of applications

+Highly efficient processing ability: 1 k steps of programming can be completed within 1ms

+Up to 4 levels of password protection system for PLC Program & PLC Hardware.

+E- Ethernet CPUs have an additional Ethernet port. Supports Modbus Ethernet/IP (adapter mode) & TCP/IP

+Maximum I/O points: 256 input points + 16 output points, or 256 output points + 16 input points.

+The DVP-EX2 MPU offers built-in 12-bit 4AD/2DA and analog/temperature modules with 14-bit resolution.

+Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B calculation modes.

Brand	Delta
Series	ES2
Model	DVP60ES200R/DVP60ES200T
SUPPLY	100 – 240 VAC
Power supply fuse	2A/250VAC
Power consumption	30VA
DC24V current output	500mA
DIGITAL INPUTS (DI)	36 Points
DIGITAL OUTPUTS (DO)	24 Points
DESCRIPTION	Standard PLC
OUTPUT TYPE	Relay/Transistor
DIMENSIONS (MM)	(H) 225 X (D) 78
MOUNTING	DIN rail
INTERFACE	Built-in RS485
Made in	China
Condition	New
