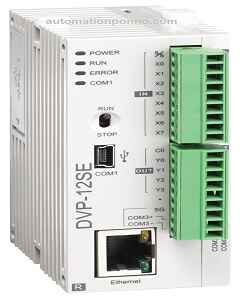

PLC Delta DVP12SE11R DVP12SE11T

Description

The PLC Delta DVP12SE11R DVP12SE11T is the PLC of Delta, The PLC Delta DVP12SE11R DVP12SE11T has USB and Ethernet port. the DVP 12SE is the Network Type Advanced Slim PLC. It includes Digital Module, Analog Module, Load Cell Module, Temperature Measurement Module, Positioning Module, Device net Slave Communication Module, Ethernet Communication Module, Canopen Master Communication Module, Profibus DP Slave Communication Module, RS-422, RS-485, RS-485 can be furnished. Serial Communication Module, Profibus Slave Module, Remote I/O Module. Users can choose suitable products according to their needs. DVP SS2 plc can meet the needs of logic operation and motion control of general occasions. See details so click here dvp12SA2 Series PLC



Specification of PLC Delta DVP12SE11R DVP12SE11T



+32-bit CPU for high-speed processing

+ Program capacity: 16 thousand steps

+ Data register: 12 thousand words

+ Max. Basic instruction execution speed: 0.64 μs

+DVP26SE: Modbus and Ethernet/IP (adapter mode, clear)

+ Built-in mini USB port, RS-485 port*2 and Ethernet port supporting Modbus TCP and EtherNet/IP slave (adapter)

※ Note: RS-485 will be reduced to 1 port on DVP26SE

+ IP filter acts as a first line of defense as a firewall

Malware and network threats

+Supports DVP-S series modules (left-side and right-side)

Note: DVP26SE supports right side module only

+ No batteries required; RTC function works for 15 days

After turning off the power Speed ​​control function

+ 4 points of high-speed pulse output: 100 kHz (2 points) & 10 kHz  (2 points)

+ 8 points high-speed pulse input: 100 kHz  2 points & 10 kHz  6 points (1 set of A/B phase 50 kHz)

+ Supports 2-axis linear and arc interpolation

OTHERS CPU



Brand	DELTA
Series	SE series
Supply Voltage	24V DC
Digital Input	8 Points
Digital output	4 Points
Output Type	Relay/Transistor
Maximum I/O Expansions	480
Analog Input	No
Analog output	No
High-speed counters input:	8 points of 4 high-speed counters:X0~X2(Maximum input frequency：100 kHz) ; X3~X7(Maximum input frequency:10 kHz)
Communication Port	USB, Ethernet & RS485
Usage/Application	PLC
Number of Inputs Digital	12 POINTS
Made In	China
Condition	New
Software	WPLSoft/ISPSoft
Programming Language	Ladder
Optional expansion module	Digital Module、Analog Module、Load Cell Module、Temperature Measurement Module、Positioning Module、DeviceNet slave communication module、Ethernet communication module、CANopen master communication module、PROFIBUS DP slave communication module、RS-485 / RS-422, serial communication module、Profibus slave module,Remote I/O Module
Certification:	CE、CUL
