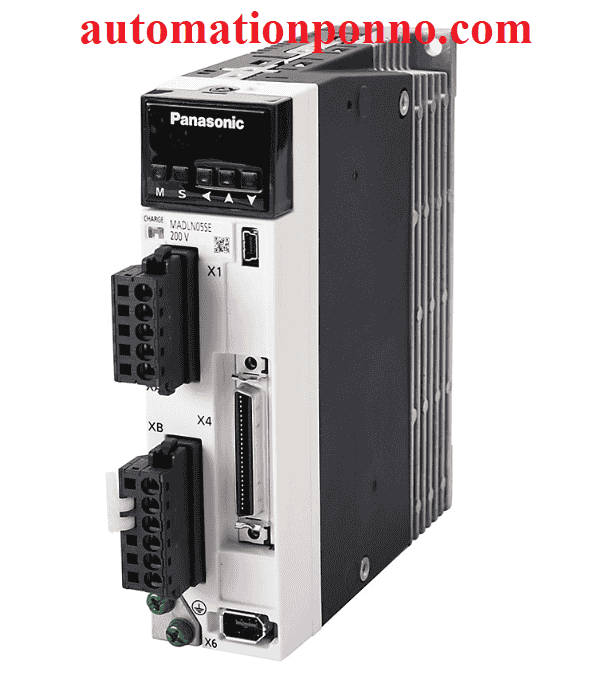

Panasonic AC Servo Driver MCDLN35SG
Ask Price WhatsApp: +8801713-722455
Description
The Panasonic AC Servo Driver MCDLN35SG is a model from Panasonic’s MINAS A6S Series of servo drivers. The MINAS A6S series is known for its high-performance and compact design, aimed at applications requiring precise motion control and high-speed operation. If need Panasonic AC Servo Driver MCDLN35SG then you can contact us BAT Power Solution Via WhatsApp: +8801713722455.
Key Features of the Panasonic AC Servo Driver MCDLN35SG (Including MCDLN35SG):
- High-Performance Control:
- The MINAS A6S series offers precise control with high responsiveness, making it suitable for applications that demand quick and accurate positioning, such as in robotics, packaging machines, and semiconductor manufacturing.
- Compact Design:
- The MCDLN35SG and other models in the series are designed to be compact, allowing for easy installation even in systems with limited space.
- Advanced Tuning Features:
- The servo drivers in this series include advanced auto-tuning and real-time adaptive tuning features, which help optimize performance without requiring manual adjustments, reducing setup time.
- Safety Functions:
- The series includes built-in safety features, such as Safe Torque Off (STO), which meets international safety standards, ensuring secure operation in industrial environments.
- Communication Interfaces:
- The MINAS A6S series supports various communication protocols, including EtherCAT and RS-485, allowing for flexible integration into different control systems.
- Energy Efficiency:
- These servo drivers are designed for high efficiency, helping reduce power consumption in industrial applications, which can contribute to lower operating costs.
Specification of Panasonic servo drive
| Item | Specifications |
| Brand | Panasonic |
| Part Number | MCDLN35SG |
| Product details | A6SG series |
| RS485/RS232 Communication type (Pulse train only) | |
| without safety function | |
| Family Name | MINAS A6 |
| Series | A6SG series |
| Type | RS485/RS232 Communication type |
| Frame | C-Frame |
| Frequency response (kHz) | 3.2 |
| Control method | Position control |
| Safety Function | without |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Pulse, Modbus (RS485 /RS232) |
| Dimensions (W) (Unit: mm) | 65 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.6 |
| Environment | For more details, please refer to the instruction manual. |
| Input power: Main circuit | Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Input power: Control circuit | Single phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz |
| Encoder feedback | 23-bit (8388608 resolution) absolute encoder, 7-wire serial |
| Parallel I/O connector: | General purpose 10 inputs |
| Control signal Input | The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: | General purpose 6 output |
| Control signal Output | The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: | 2 outputs (Analog monitor: 2 output) |
| Analog signal Output | |
| Parallel I/O connector: | 2 inputs (Photo-coupler input, Line receiver input) |
| Pulse signal Input | |
| Parallel I/O connector: | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Pulse signal Output | |
| Communication function | USB, RS232, RS485, Modbus-RTU |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RS232 | 1:1 communication |
| Communication function: RS485 | 1: n communication (max 31) |
| Communication function: Modbus-RTU | 1: n communication |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 3 mode is enabled, |
| (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command |
The Panasonic MCDLN35SG is a high-performance servo driver from the MINAS A6S series, known for its precision, advanced tuning capabilities, and compact design. It is suitable for various industrial applications that demand reliable and accurate motion control.
