MT8102iQ Weintek 10 inch hmi
Original price was: 38,000.00৳ .35,000.00৳ Current price is: 35,000.00৳ .
MT8102iQ Weintek 10 inch HMI Price
Brand: Weintek
Model: MT8102iQ
Made in China
Call/WhatsApp: +8801713-722455
Description
The MT8102iQ Weintek 10 inch hmi Human Machine Interface is the Weintek Labs. It has many function specially Ethernet functions & 2 Comport, we can easily interface between the Ethernet Programmable Logic Controller (PLC), also another PLC, HMI, Controller & VFDs. For details see the MT8102iQ datasheet. We have ready stock in Bangladesh MT8102iQ HMI 10” inch.
Features of MT8102iQ Weintek 10 inch hmi
+Modern choices bring you a distinctive client experience.
+The lovely human-machine interface is completely overhauled to meet the different applications and needs of users.
+Prepared with an updated ARM RISC 528MHz CPU processor
+Wide input voltage extend 10.5~28VDC
+Consistent update from EB8000 to EasyBuilder Professional
Specification of MT8102iQ Weintek HMI 10”
| Brand | WEINTEK | |
| Model | MT8102iQ | |
| Display | Display | 10.1” TFT |
| Resolution | 1024 x 600 | |
| Brightness (cd/m2) | 350 | |
| Contrast Ratio | 500:01:00 | |
| Backlight Type | LED | |
| Backlight Life Time | 50,000 hrs. | |
| Colors | 16.7M | |
| LCD Viewing Angle (T/B/L/R) | 70/70/80/80 | |
| Pixel Pitch (mm) | 0.2175 (H) x 0.2088 (V) | |
| Touch Panel | Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash | 128 MB |
| RAM | 128 MB | |
| Processor | 32-bit RISC 528MHz | |
| SD Card Slot | N/A | |
| USB Host | USB 2.0 x 1 | |
| USB Client | N/A | |
| Ethernet | 10/100 Base-T x 1 | |

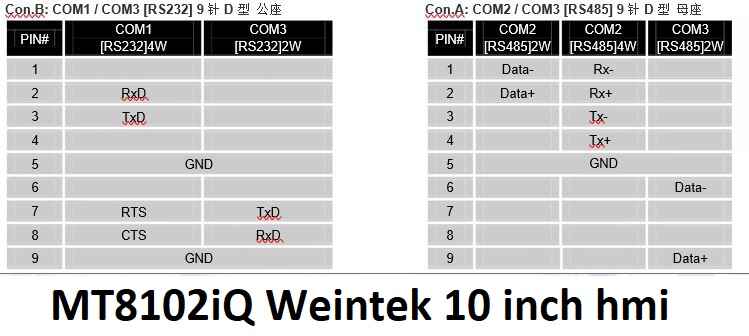

| I/O Port | COM Port | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W |
| Con.B: COM1 RS-232 4W, COM3 RS-232 2W* | ||
| RS-485 Dual Isolation | N/A | |
| CAN Bus | N/A | |
| HDMI | N/A | |
| Audio Output | N/A | |
| RTC | Built-in | |
| Power | Input Power | 10.5 ~ 28VDC |
| Power Isolation | Built-in | |
| Power Consumption | 1.3A@12VDC ; 650mA@24VDC | |
| Voltage Resistance | 500VAC (1 min.) | |
| Isolation Resistance | Exceed 50MW at 500VDC | |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | |
| PCB Coating | N/A | |
| Enclosure | Plastic | |
| Specification | Dimensions WxHxD | 271 x 213 x 36.4 mm |
| Panel Cutout | 260 x 202 mm | |
| Weight | Approx. 1 kg | |
| Mount | Panel mount | |
| Protection Structure | NEMA4 / IP65 Compliant Front Panel | |
| Environment | Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 50°C (32° ~ 122°F) | |
| Relative Humidity | 10% ~ 90% (non-condensing) | |
| Certificate | CE | CE marked |
| Software | EasyBuilder Pro | V5.07.01 or later versions |
| Weincloud | EasyAccess 2.0 (Optional) | |
Conclusion
If you need to MT8102iQ Weintek 10 inch hmi inch in Bangladesh, or If you need to software and need to installed, you can contact BAT power solution via Call/WhatsApp: +8801713722455, Weintek 10 inch hmi price is acceptable approximately 35000-38000 also we have stock in Bangladesh. we have others MT8102iE hmi & Weintek MT6071iE, MT6100i, TK6100i
