Mitsubishi FX3U 4DA ADP

Description

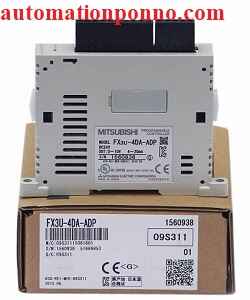

The Mitsubishi FX3U 4DA ADP is an analog output adapter module designed for use with the FX3U series of programmable logic controllers (PLCs) from Mitsubishi Electric. This module allows the PLC to output analog signals, which are essential for controlling devices such as actuators, variable frequency drives, and other analog-controlled equipment. FX3U-4DA-ADP Special Adapter for Analog Output (hereafter called 4DA-ADP) is a special adapter for adding four analog output points. If you need FX3U 4DA ADP Module then you can contact BAT Power Solution Via the E-mail/WhatsApp +8801713722455.

FX3U-4DA-ADP Module is used to industrial application.

Key Features:

1. Analog Outputs:
   • The FX3U-4DA-ADP module provides 4 analog output channels.
   • Each channel can output either voltage (0-10V) or current (4-20mA), making it versatile for different types of analog control.
2. High Resolution:
   • The module offers 12-bit resolution for each channel, ensuring precise control over the analog output signals.
3. Compact and Easy Integration:
   • The module is compact and attaches directly to the FX3U PLC base unit, simplifying installation and integration.
   • It doesn’t require a separate power supply as it is powered by the PLC unit itself.
4. Multiple Output Ranges:
   • Output ranges can be configured for each channel, allowing flexibility in how the outputs are used in different applications.

Specifications Mitsubishi FX3U 4DA ADP

• Analog Output Channels: 4
  • Voltage Output Range: 0-10V DC
  • Current Output Range: 4-20mA DC
  • Resolution: 12 bits (approximately 2.5 mV or 4 µA per bit)
• Power Supply: The module draws power from the FX3U base unit, typically requiring no external power source.
• Operating Temperature: 0°C to 55°C (32°F to 131°F), making it suitable for most industrial environments.

Installation and Configuration:

1. Mounting:
   • The FX3U-4DA-ADP attaches to the FX3U main PLC unit via a dedicated expansion slot, making it easy to install without additional wiring.
2. Wiring:
   • Connect the output terminals to the devices you wish to control with analog signals. Ensure that the wiring is done according to the specified voltage or current requirements.
3. Software Configuration:
   • Use Mitsubishi’s GX Works2 or GX Developer software to configure the analog output channels.
   • Set the output range (voltage or current) for each channel and program the PLC to generate the required analog signals.
4. Testing:
   • After installation, test the outputs to ensure they are functioning correctly by monitoring the analog signals and verifying the response of the connected devices.

The FX3U-4DA-ADP module is a powerful addition to the Mitsubishi FX3U PLC series, offering four channels of high-resolution analog output. It is particularly useful in industrial applications requiring precise analog control, such as in process control, factory automation, and data acquisition systems. Its compact design, ease of integration, and flexibility make it a valuable component in advanced automation solutions. for others Mitsubishi products
