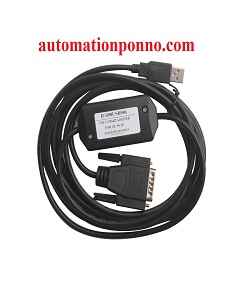

GE Fanuc plc programming cable IC690USB901 IC690ACC901

Description

The GE Fanuc plc programming cable IC690USB901 IC690ACC901 is a USB-to-RS232 programming cable used to connect a PC to a GE Fanuc Series 90-30 PLC. This cable facilitates programming, monitoring, and troubleshooting of GE Fanuc PLCs using the Proficy Machine Edition software. If you need to GE Fanuc plc programming cable IC690USB901 IC690ACC901 Price in BD you can contact us BAT Power Solution Via WhatsApp: +8801713722455.

Key Features GE Fanuc plc programming cable IC690USB901 IC690ACC901

1. USB to RS232 Conversion:
   • The IC690USB901 cable converts the USB interface of a PC to the RS232 port of a GE Fanuc PLC. This is especially useful for modern PCs that no longer have RS232 ports.
2. RS232 Communication:
   • The cable is designed to support RS232 communication with GE Fanuc Series 90-30 PLCs via the PLC’s serial communication port.
3. Plug-and-Play Operation:
   • The cable requires the installation of a driver, which will create a virtual COM port on the PC. Once the driver is installed, the Proficy Machine Edition software will recognize the PLC.
4. Robust Industrial Design:
   • The cable is built for the industrial environment, with proper shielding to ensure reliable communication in the presence of electrical noise typical in PLC-controlled environments.

Connection Setup GE Fanuc plc programming cable IC690USB901 IC690ACC901

1. Connect the USB end of the IC690USB901 cable to the USB port of your PC.
2. Install the USB driver (if required) for the cable to create a virtual COM port. The driver may come with the cable or can be downloaded from GE’s official support site.
3. Connect the other end (RS232) to the serial communication port on the GE Fanuc Series 90-30 PLC.
4. Open Proficy Machine Edition on your PC and configure the correct COM port settings within the software.
5. Once connected, you can start programming, uploading, downloading, or monitoring your PLC.

Compatibility

• PLC: The IC690USB901 is compatible with GE Fanuc’s Series 90-30 PLCs, as well as other GE Fanuc PLC models that support RS232 communication.
• Software: It is used with Proficy Machine Edition for programming and monitoring tasks.

Applications

• Programming: Upload and download ladder logic programs between your PC and the GE Fanuc PLC.
• Monitoring: View real-time data, I/O status, and monitor the behavior of the PLC.
• Troubleshooting: Diagnose communication and program errors in the PLC.

Important Considerations

• Ensure the correct USB driver is installed for smooth communication.
• Configure the correct COM port in the Proficy Machine Edition software, matching the virtual COM port created by the USB driver.
• Verify the correct communication settings (baud rate, parity, stop bits, etc.) between the PC and the PLC. Others Cable
