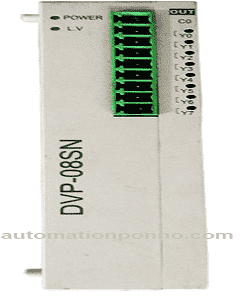

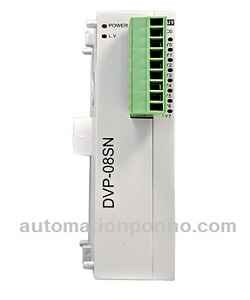

Delta PLC Module DVP08SN11R

Description

The Delta PLC Module DVP08SN11R is an extension module designed to expand the input and output capabilities of Delta’s DVP series Programmable Logic Controllers (PLCs). Delta PLC Module DVP08SN11R. DVP-08SN11R is possible with a competitive price. We have dealers/agents for Delta PLC-HMI. BAT Power solution provide this Delta Digital Output Modules for many industrial applications. Power Supply: 24V DC Digital Outputs: 8 (Relay). We supply all Delta AC Drives, Delta AC Servo Motors, Delta Rotary Optical Encoders, Delta Motion Control Logic, Delta Human Machine Interface, Delta Text. Delta Industrial Field-Bus Solutions, Delta Pressure Sensors.

The Delta DVP08SN11R adds 8 relay outputs & used to connect Delta SS series/SS2 series/SA series/SX series/SC series PLC. It connects to the right-side expansion bus of the PLC and can be powered from the same 24 V as the PLC.

This module provides additional relay outputs, making it suitable for applications that require control over devices such as motors, solenoids, and other actuators.

Technical Specifications Delta PLC Module DVP08SN11R

Number of Outputs: 8 relay outputs

Output Type: Relay, normally open (NO)

Output Rating:

Voltage: 250V AC, 30V DC

Current: 2A per channel

Response Time: < 10ms

Power Consumption: 1.0W (typical)

Connector Type: Removable terminal block

Operating Voltage: 24V DC (PLC supplied)

Isolation: Relay outputs are isolated from each other and the PLC system

Operating Temperature: 0 to 55°C

Storage Temperature: -25 to 70°C

Dimensions: Compact size suitable for space-constrained applications

Weight: Lightweight for ease of handling and installation

Category	Industrial Automation and Controls Controllers – PLC Modules
Manufacturer	Delta Electronics/Industrial Automation
Series	DVP
Package	Box
Part Status	Active
Type	Output Module
For Use With/Related Products	DVP-S Series for example (SS/SA/SX/SV Series, etc.
Output Type	Relay
Number of Outputs and Type	8
Supply Voltage	24VDC
Mounting Type	DIN Rail
Termination Style	Plug-gable Screw Terminal
Operating Temperature	0°C ~ 55°C
Approval Agency	CE, CULUS
Base Product Number	DVP08

The Delta DVP08SN11R is a versatile and reliable relay output module that expands the functionality of Delta’s DVP series PLCs
