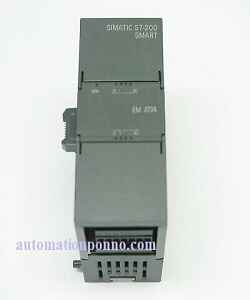

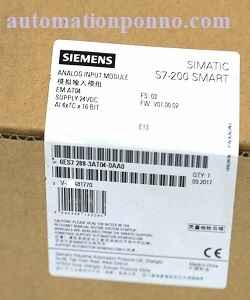

6ES7288 3AT04 0AA0 Siemens Analog Input Module

Description

6ES7288 3AT04 0AA0 Siemens Analog Input Module /Temperature module of SIMATIC S7-200 SMART series PLC, The Analog input SM AI04 module has 4 channel Analog input (AI), 4xAI thermocouples.

The part number “6ES7288-3AT04-0AA0” is associated with the Siemens SIMATIC S7-200 SMART series, specifically identifying an analog input temperature module. This module is used for reading temperature signals from various types of temperature sensors.

Download manual

Key Features of the 6ES7288 3AT04 0AA0 Siemens Analog Input

Module Temperature :

1. Series: SIMATIC S7-200 SMART
2. Type: Analog Input Temperature Module
3. Inputs: Designed to interface with multiple temperature sensors.
4. Supported Sensors: Typically supports various types of temperature sensors, including thermocouples (e.g., J, K, T types) and resistance temperature detectors (RTDs), such as Pt100.
5. Input Range: Configurable based on the type of temperature sensor used, allowing for a wide range of temperature measurements.
6. Resolution and Accuracy: High-resolution inputs for accurate and precise temperature measurements.

Applications of 6ES7288 3AT04 0AA0:

This temperature module is used in various industrial applications where precise temperature monitoring and control are essential. These applications include:

• Process Control: Monitoring and controlling temperatures in chemical processing, food and beverage production, and pharmaceutical manufacturing.
• HVAC Systems: Controlling heating, ventilation, and air conditioning systems to maintain desired temperature conditions.
• Industrial Ovens and Furnaces: Monitoring and controlling temperatures in industrial heating applications.
• Refrigeration Systems: Ensuring proper temperature regulation in refrigeration and cold storage facilities.



others Module



Specification of 6ES7288 3AT04 0AA0 Siemens Analog Input Module



Article Number (Market Facing Number)	6ES7288-3AT04-0AA0
Product Description	SIMATIC S7-200 SMART, Analog input SM AI04
General information
Product type designation	SM AT04, AI TC 4×16 bit
Supply voltage
Type of supply voltage	DC 24 V
Rated value (DC)	20.4 V
permissible range, lower limit (DC)	28.8 V
permissible range, upper limit (DC)	Yes
Reverse polarity protection
Input current
Current consumption, typ.	30 mA; Current consumption of 24 V DC user power 40 mA; at 20.4 V DC and max. load
Current consumption, max.	70 mA; For 5 V DC from CPU module
from backplane bus 5 V DC, typ.	80 mA
from backplane bus 5 V DC, max.
Power loss
Power loss, typ.	1.5 W
Analog inputs
Number of analog inputs	4
Input ranges
●   Voltage	No
●   Current	No
●   Thermocouple	Yes
●   Resistance thermometer	No
●   Resistance	No
Analog outputs
Number of analog outputs	0
