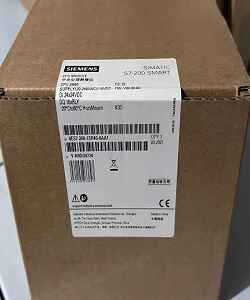

6ES7288-1SR40-0AA1-CPU-SR40 6ES7-288-1SR40-0AA1
6ES7288-1SR40-0AA1-CPU-SR40
6ES7-288-1SR40-0AA1

6ES7288 1SR40 0AA1 CPU SR40

Ask Price  WhatsApp: +8801713-722455

Category: Tags: , , , , ,

Description

6ES7288 1SR40 0AA1 CPU SR40 & 6ES7288 1SR40 0AA0 is the Programmable logic controller (PLC) of SIMATIC S7-200 SMART Series, The CPU SR40, CPU, AC/DC/relay, onboard I/O: 24 Digital Input (DI) 24 V DC; 16 Digital Output (DQ) relay 2 A; power supply: AC 85 – 264 V AC at 47-63 Hz program/data memory 40 KB web server support

Download Manual

Specification of 6ES7288 1SR40 0AA1 CPU SR40



General information
Product type designation CPU SR40 AC/DC/Relay
Engineering with
Installation type/mounting
Rail mounting Yes; Standard – DIN rail
Supply voltage
Rated value (AC)
●   120 V AC Yes
●   230 V AC Yes
permissible range, lower limit (AC) 85 V
permissible range, upper limit (AC) 264 V
Line frequency
●   permissible range, lower limit 47 Hz
●   permissible range, upper limit 63 Hz
Input current
Current consumption (rated value) 190 mA; at 240 V AC
Current consumption, max. 300 mA; At 120 V AC
Inrush current, max. 16.3 A; at 264 V
Output current
Current output, max. 300 mA; 24 V DC Sensor Power
for backplane bus (5 V DC), max. 1.4 A; max. 5 V DC for EM bus
Power loss
Power loss, max. 23 W
Memory
Type of memory DDR
Flash Yes Yes
RAM 16 kbyte
Memory available for user data 24 kbyte; Program memory
Memory size Yes;
Micro Memory Card microSDHC Card (optional)
Backup Yes;
●   present Maintenance free, RTC requires 7 days.
CPU processing times
for bit operations, typ. 150 ns; / instruction
for word operations, typ. 1.2 µs; / instruction
for floating point arithmetic, typ. 3.6 µs; / instruction
Address area
I/O address area
●   Inputs 144 byte; 256 bit of digital inputs & 56 words of analog inputs
●   Outputs 144 byte; 256 bit of digital outputs & 56 words of analog outputs
Time of day
Clock
●   Type Hardware clock, no battery backup
●   Hardware clock (real-time) Yes
●   Backup time 7 d
●   Deviation per day, max. 120 s; within 120s/month at 25 °C
Digital inputs & Outputs
Number of digital inputs 24; Integrated
●   of which inputs usable for technological functions 4; HSC (High Speed Counting)
Digital Outputs Number of digital outputs 16; Relays
configuration / header
configuration / programming / header
Programming language
— LAD Yes
— FBD Yes
— STL Yes
Dimensions
Width 125 mm
Height 100 mm
Depth 81 mm
Weights
Weight, approx. 441.3 g



SR30
