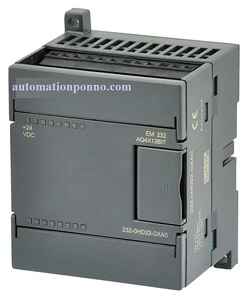

The 6ES7232 0HD22 0XA0 EM232 analog output module SIMATIC S7-200 Programmable Logic Controller (PLC), analog output EM 232 module is used to only for S7-22X CPU for example CPU222, CPU224CN, CPU224, CPU 226, This Module has 4 AI, +/-10 V DC, 0…20 mA 12/11-bit converter, bat power solution has this module, if you need to install this module then you can contact with us WhatsApp or through the email.

Download Manual

Specification of 6ES7232 0HD22 0XA0 EM232 analog output module

Brand	SIEMENS
Model	6ES7232-0HD22-0XA0
Input current
from external supply (24 V DC), max.	70 mA
from backplane bus 5 V DC, max.	20 mA
Power loss
Power loss, typ.	2 W
Analog outputs
Number of analog outputs	4
Output ranges, voltage
● -10 V to +10 V	Yes
Output ranges, current
● 4 mA to 20 mA	Yes
Load impedance (in rated range of output)
● with voltage outputs, min.	5 kΩ
● with current outputs, max.	0.5 kΩ
Analog value generation for the outputs
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.	12 bit; U / 12 bit, I / 11 bit
Settling time
● for voltage output	100 µs
● for current output	2 ms
Displayable conversion value range
● bipolar signals	-32 000 to +32 000
● unipolar signals	0 to 32 000
Errors/accuracies
Operational error limit in overall temperature range
● Voltage, relative to output range, (+/-)	2%
● Current, relative to output range, (+/-)	2%
Basic error limit (operational limit at 25 °C)
● Voltage, relative to output range, (+/-)	0.50%
● Current, relative to output range, (+/-)	0.50%
Potential separation
Potential separation analog outputs
● Potential separation analog outputs	No
connection method
Plug-in I/O terminals	No
Dimensions
Width	71.2 mm
Height	80 mm
Depth	62 mm
