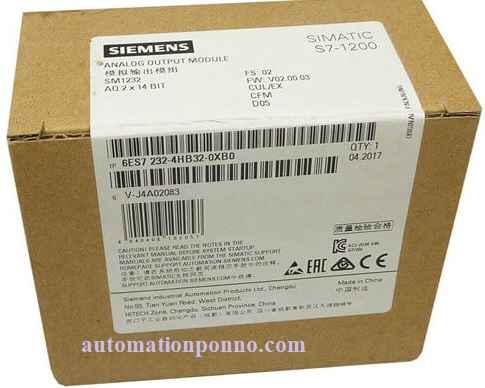

6ES7 232 4HB32 0XB0 SM 1232 AQ

6es7232-4hb32-0xb0 Price in Bangladesh

Brand: Siemens

Model: 6es7232 4hb32 0xb0

Origin: China

Ask Price Call/WhatsApp: +8801713-722455

Category: Module Tags: 232 4hb32 0xb0 Price in BD, 232 4hd32 0xb0, 6ES7 232 4HB32 0XB0, 6es7232 4hb32 0xb0 Price in Bangladesh, 6es7232 4hd32 0xb0, SM 1232 AQ

Description
Reviews (0)

Description

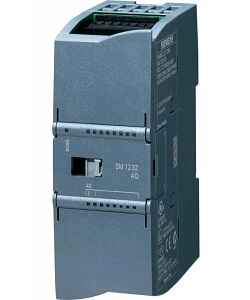

The 6ES7 232 4HB32 0XB0 SM 1232 AQ is the SIMATIC S7-1200 Analog output module of siemens. The SM 1232 module has 2 Analog Output AO, +/-10 V, 14-bit resolution, or 0-20 mA/4-20 mA, 13-bit resolution. If you need to 6ES7 232-4HB32-0XB0 price in BD you can contact BAT Power Solution Through the Call/WhatsApp: +8801713722455, We have Aviliable stock in our store.

Download Manual

Specification of 6ES7 232 4HB32 0XB0 SM 1232 AQ

Brand	SIEMENS
Model	6es7232 4hd32 0xb0
General information
Product type designation	SM 1232, AQ 2×14 bit
Supply voltage
Rated value (DC)	24 V
Input current
Current consumption, typ.	45 mA
from backplane bus 5 V DC, typ.	80 mA
Power loss
Power loss, typ.	1.5 W
Analog outputs
Number of analog outputs	2; Current or voltage
Output ranges, voltage
● -10 V to +10 V	Yes
Output ranges, current
● 0 to 20 mA	Yes
Load impedance (in rated range of output)
● with voltage outputs, min.	1 000 Ω
● with current outputs, max.	600 Ω
Cable length
● shielded, max.	100 m; shielded, twisted pair
Analog value generation for the outputs
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max.	14 bit; Voltage: 14 bit; Current : 13 bit
Errors/accuracies
Temperature error (relative to output range), (+/-)	25 °C ±0.3%, to 55 °C ±0.6% total measurement range
Basic error limit (operational limit at 25 °C)
● Voltage, relative to output range, (+/-)	0.30%
● Current, relative to output range, (+/-)	0.30%
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
● common mode voltage / with interference voltage suppression / maximum	12 V
Interrupts/diagnostics/status information
Alarms	Yes
Diagnostics function	Yes
Alarms
● Diagnostic alarm	Yes
Diagnoses
● Monitoring the supply voltage	Yes
● Wire-break	Yes

● Short-circuit	Yes
Diagnostics indication LED
● for status of the outputs	Yes
● for maintenance	Yes
Degree and class of protection
IP degree of protection	IP20
Standards, approvals, certificates
CE mark	Yes
CSA approval	Yes
UL approval	Yes
cULus	Yes
FM approval	Yes
RCM (formerly C-TICK)	Yes
KC approval	Yes
Marine approval	Yes
Ambient conditions
Free fall
● Fall height, max.	0.3 m; five times, in product package
Ambient temperature during operation
● min.	-20 °C
● max.	60 °C
● horizontal installation, min.	-20 °C
● horizontal installation, max.	60 °C
● vertical installation, min.	-20 °C
● vertical installation, max.	50 °C
Ambient temperature during storage/transportation
● min.	-40 °C
● max.	70 °C
Air pressure acc. to IEC 60068-2-13
● Operation, min.	795 hPa
● Operation, max.	1 080 hPa
● Storage/transport, min.	660 hPa
● Storage/transport, max.	1 080 hPa
Relative humidity
● Operation at 25 ℃ without condensation, max.	95%
Pollutant concentrations
● SO2 at RH < 60% without condensation	S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free
connection method
required front connector	Yes
Mechanics/material
Enclosure material (front)
● Plastic	Yes
Dimensions
Width	45 mm
Height	100 mm
Depth	75 mm
Weights
Weight, approx.	180 g
